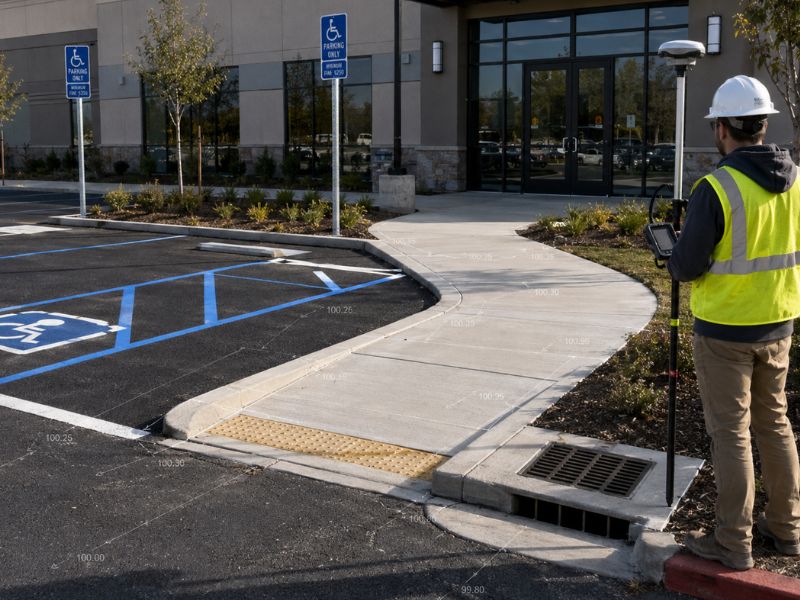

A topographic survey does more than mark where the pavement sits. It records the exact height of every point across a parking lot, sidewalk, and entrance. That’s exactly the kind of detail an accessible design needs. A small change in grade might look harmless to the eye, but it can still break the rules for an accessible space. This post walks through how a topographic survey supports ADA planning, from the first parking space all the way to the front door.

Measuring Parking-Lot Running Slopes and Cross Slopes

Every accessible parking space and access aisle has to sit within a narrow slope range. There’s a limit on how steep it can be front to back, and a separate limit for side to side. A topographic survey records height points close together, so it can catch grade changes that a quick walk-through would miss.

Pavement settles over time. A lot that was graded right ten years ago might now have a low spot near a drain. Years of traffic can leave a slight tilt too. These shifts are often tiny, just a fraction of an inch per foot, but that’s enough to push a space out of compliance. Detailed elevation data gives designers real numbers instead of a guess.

Mapping Curb Ramps, Landings, and Grade Breaks

Curb ramps and landings are some of the hardest features to survey well. Each one packs several grade breaks into a small space: the ramp slope, the flare on each side, and the flat landing at the top. Regular contour lines are often spaced a foot or more apart. They just can’t show that much change in such a tight area.

That’s why surveyors mark these features as separate points instead of relying on contours alone. Curb faces, pavement edges, and the exact spot where a ramp meets a landing all get recorded on their own. Without this level of detail, a design team would be working from an incomplete picture of how the ramp actually behaves.

Tracing the Accessible Route to the Building Entrance

An accessible parking space only helps if the path from that space to the door is accessible too. A topographic survey traces the whole route. It covers sidewalks, crossings, ramps, and the threshold at the entrance itself.

Along the way, the survey also flags obstacles. Maybe a light pole sits too close to the walkway. Maybe a sign is in the wrong spot, or a section of sidewalk is cracked and uneven. Height changes along the route matter just as much as the ones in the parking lot. A sidewalk that climbs too steeply toward a door can undo all the careful planning that went into the parking spaces.

Locating Drainage Features Along Pedestrian Areas

Drainage and accessibility often clash right where people walk. Catch basins, gutters, low channels, and pavement crowns near a walkway all get marked during a topographic survey, especially if they sit close to the accessible path.

Water still has to go somewhere, and drainage design can’t ignore that fact. But a poorly placed drain or a steep pavement crown can create a sudden dip. That dip can catch a wheel or a cane at just the wrong moment. Surveyors record these features so engineers can send water away from the walkway without adding a sharp change in grade right where someone is trying to cross.

Providing Elevation Data for Accessibility Improvements

Once the survey wraps up, engineers and architects use it to build a model of the existing site. Spot heights, key lines, and the exact spot of every curb, ramp, and pavement edge all feed into this model. From there, designers can test different grading plans before anyone touches a shovel.

One thing needs to be said clearly. A topographic survey gives real, measured site conditions. On its own, though, it doesn’t prove that a parking lot meets ADA rules. That call belongs to a qualified designer or reviewing authority, who checks the survey data against the actual accessibility standards.

Frequently Asked Questions

Can a topographic survey determine whether a parking lot is ADA compliant?

It can record measurable things like heights, slopes, curb ramps, and pavement changes. Whether those numbers actually meet accessibility rules is up to a qualified designer or reviewing authority.

What should the surveyor locate around accessible parking spaces?

Depending on the job, this can include parking-space corners, access aisles, pavement markings, curb ramps, sidewalks, wheel stops, signs, drainage structures, nearby entrances, and key spot heights.

Why are cross-slope measurements important?

A surface can look flat and still tilt from side to side. Cross-slope readings catch that kind of tilt, which broad contour lines or a quick visual check often miss.

Is a boundary survey also required for an accessibility project?

Not always. A boundary survey becomes necessary when the work gets close to property lines, easements, or rights-of-way, but it answers a different question than a topographic survey does.

When should the topographic survey be ordered?

Ideally before the design team starts detailed accessibility, paving, or grading plans. Working from real, checked elevations from the start saves rework later, once construction drawings are already underway.
